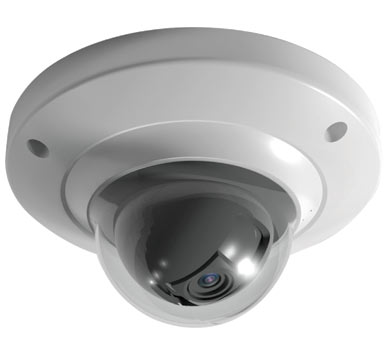

IPH-DV51C/P 2Méga Pixel Dome IP Intérieur
Présentation :
IPH-DV51C/P 2Méga Pixel Dome IP Intérieur, H264, Objectif 3.6mm, CMOS, POE
Caractéristiques :
*2MP CMOS Full HD Vandal-proof Network Mini Dome Camera, 25fps@1080P, Lens: 3.6mm
(2.8mm/6mm/8mm optional), PoE, IK10, IP66.
-
MODEL
IPH-DV51C/P
General
Processor
TI DaVinci Series DSP
Operating System
Embedded LINUX
Resource
Simultaneous remote monitoring, local recording and remote
control
User Interface
WEB, CMS(DSS/ PSS), DMSS, NVR
Camera
Image Sensor
1/3? 2.0 Megapixel SONY progressive scan Exmor
CMOS
Effective Pixels
1920 (H)×1080(V)
Electronic Shutter
Auto/Manual, 1/3~1/10000s
Mini. Illumination
0.1LUX/F1.2(Color), 0.05LUX/F1.2(B/W)
Signal Noise Ratio
>50dB
Gain Control
Auto/Manual
White Balance
Auto/Manual
Day/Night
Electrical Day/Night
Lens Mount
M12
Lens
3.6mm (2.8mm/6mm/8mm optional)
Video
Video Compression
H.264/MJPEG
Image Resolution
1080P(1920×1080) / 720P(1280×720) /
D1(704×576/704×480)
Encoding Speed
1080P/720P(1~25fps) + D1(1~25fps)
Bit Rate
160K~8Mbps
Snapshot
Fastest 1fps JPEG capture
Video Format
PAL
Network
Ethernet
RJ-45 (10/100Base-T)
Network Functions
HTTP, TCP/IP, ARP, IGMP, ICMP, RTSP, RTP, UDP, RTCP, SMTP,
FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, Bonjour, SNMP
Remote Operation
Monitor, PTZ control, Playback, System setting, File
download, Log information, Maintenance & Upgrade
Auxiliary Interface
SD Card
Max 32GB, local storage
Environmental
Power Supply
DC12V, PoE
Power Consumption
<4W
Ingress Protection
IK10 & IP66
Operating Environment
-10°C~+60°C, 10%~90%
Dimension
˘110mm x 54mm
Weight
400g
Dimensions (mm):
-
MODEL
IPH-DV51C/P
General
Processor
TI DaVinci Series DSP
Operating System
Embedded LINUX
Resource
Simultaneous remote monitoring, local recording and remote
control
User Interface
WEB, CMS(DSS/ PSS), DMSS, NVR
Camera
Image Sensor
1/3? 2.0 Megapixel SONY progressive scan Exmor
CMOS
Effective Pixels
1920 (H)×1080(V)
Electronic Shutter
Auto/Manual, 1/3~1/10000s
Mini. Illumination
0.1LUX/F1.2(Color), 0.05LUX/F1.2(B/W)
Signal Noise Ratio
>50dB
Gain Control
Auto/Manual
White Balance
Auto/Manual
Day/Night
Electrical Day/Night
Lens Mount
M12
Lens
3.6mm (2.8mm/6mm/8mm optional)
Video
Video Compression
H.264/MJPEG
Image Resolution
1080P(1920×1080) / 720P(1280×720) /
D1(704×576/704×480)
Encoding Speed
1080P/720P(1~25fps) + D1(1~25fps)
Bit Rate
160K~8Mbps
Snapshot
Fastest 1fps JPEG capture
Video Format
PAL
Network
Ethernet
RJ-45 (10/100Base-T)
Network Functions
HTTP, TCP/IP, ARP, IGMP, ICMP, RTSP, RTP, UDP, RTCP, SMTP,
FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, Bonjour, SNMP
Remote Operation
Monitor, PTZ control, Playback, System setting, File
download, Log information, Maintenance & Upgrade
Auxiliary Interface
SD Card
Max 32GB, local storage
Environmental
Power Supply
DC12V, PoE
Power Consumption
<4W
Ingress Protection
IK10 & IP66
Operating Environment
-10°C~+60°C, 10%~90%
Dimension
˘110mm x 54mm
Weight
400g
Dimensions (mm):
Détails :
Sat Info Services n’est pas responsable des erreurs dans la documentation
des produits. |
