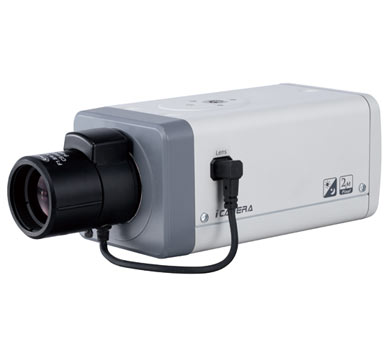

IPH-B51C/P 2Méga Pixel IP Box Objectif non inclus
Présentation :
IPH-B51C/P 2Méga Pixel IP Box Objectif non inclus, H264, CMOS, POE
Caractéristiques :
*2.0 MP CMOS Full HD Water-proof IR Network Camera , 25fps@1080P, 3.3~12mm
lens, PoE, IR LED, IP66.
MODEL
IPH-IB51C/P
General
Processor
TI DaVinci Series DSP
Operating System
Embedded LINUX
Resource
Simultaneous remote monitoring, local recording and remote
control
User Interface
WEB, CMS(DSS/ PSS), DMSS, NVR
Camera
Image Sensor
1/3? 2.0 Mp SONY progressive scan Exmor CMOS
Effective Pixels
1920(H)×1080(V)
Electronic Shutter
Auto/Manual, 1/3~1/10000s
Mini. Illumination
0.1LUX/F1.4(Color), 0.01LUX/F1.4(B/W), 0Lux(IR ON)
Signal Noise Ratio
>50dB
Gain Control
Auto/Manual
White Balance
Auto/Manual
Day/Night
ICR
Lens
CS mount, Auto Iris, 3.3-12mm@F1.4
Video
Video Compression
H264 / MJPEG
Image Resolution
1080P(1920×1080) / SXGA(1280×1024) /1.3M(1280× 960) /
720P(1280×720) /D1(704×576) / CIF(352×288)
Encoding Speed
Main Stream:1080P/ SXGA/ 1.3M /720P/
D1(1~25fps)
Extra Stream: D1/CIF (1~25fps)
Bit Rate
56Kbps~8192Kbps
Snapshot
Fastest 1fps JPEG capture
Video Format
PAL
Analogue Video Output
1 channel BNC(1.0Vp-p, 75Ω)
Audio
Audio Compression
G.711a / G.711u / PCM
Bit Rate
128kbps/64kbps/10.2kbps
Input
1 channel, 3.5mm JACK LINE IN
Output
1 channel, 3.5mm JACK SPEAK OUT
Bidirectional Talk
The same with the audio input channel
Network
Ethernet
RJ-45 (10/100Base-T)
Network Functions
HTTP, TCP/IP, ARP, IGMP, ICMP, RTSP, RTP, UDP, RTCP, SMTP,
FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, Bonjour, SNMP
Remote Operation
Monitor, PTZ control, Playback, System setting, File
download, Log information, Maintenance & Upgrade
Auxiliary Interface
SD Card
Max 32GB Micro SD card, local storage
Alarm
2 Input / 1 Output
Environmental
Power Supply
DC12V(AC24V optional), PoE
Power Consumption
Max.10W
Max. IR Distance
20 m
Ingress Protection
IP66
Operating Environment
-10°C~+60°C, 10%~90%
Dimension
ф104 mm × 306.7 mm
Weight
1.25Kg
Détails :
