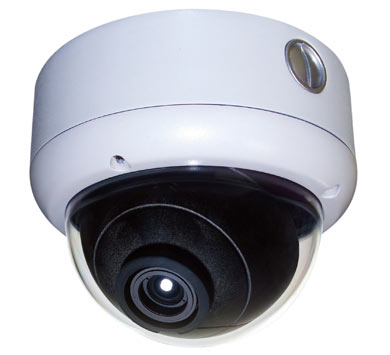

DPS-DVC79W/2811D - Caméra couleur infraro

Présentation :

690 lignes, tv, 2.8-11mm, anti vendale, wide dynamic, 0.8 Lux/F1.2, pixim DPS


Caractéristiques :


  •

      MODEL

      DPS-DVC79W/2811D


      Pick-up device
      1/3" WDR Pixim Seawolf Sensor


      Effective pixels
      758 x 540


      Pattern
      PAL/NTSC compatible(menu optional)


      Pixel size
      7um x 7um


      Sync system
      Internal/External


      H/V resolution
      H690TVL/V460TVL


      Min illumination
      Color:0.1Lux(F1.2); Slow shutter: 0.01Lux


      S/N ratio
      more than 50dB (AGC OFF)


      Lens
      2.8-11mm Korean DC


      Angle of view
      124.3º-30.2º


      Electronic shutter
      AUTO/OFF


      WDR
      High/Middle/Low/Custom


      CRR
      ON/OFF


      BLC
      ON/OFF


      Exposure mode
      ATM/Global/Normal/Lower1/3 /Manual


      Electronic slow shutter
      (64X/32X/16X/8X/4X/2X)/Off


      Digital zoom
      8 times


      3D noise reduction
      High/Low/Off


      Mirror function
      Horizontal/Vertical/Rotation/Off


      Privacy zones
      12 sets


      Motion detection
      4 sets


      White balance
      ATW/ATW PRO/PUSH LOCK/Manual


      AGC
      High/Middle/Low/Off


      Image adjustment
      Saturation/Sharpness


      Image Freeze
      On/Off


      Day&Night
      Auto/B/W/Color/EXT


      Gamma
      Adjustable


      video rate
      80-150


      OSD menu
      English/Chinese


      Video output
      1.0V p-p Composite Video Output, 75 Ohm


      Power supply
      DC12V+/-10% AC24V+/-10%


      Power consumption(Max)
      200mA/DC12V (350mA/DC12V AC24V/6W)


      Operating temp
      -20°C ~ 50°C





Détails :

Marque  : CCTV
Code EAN  :
