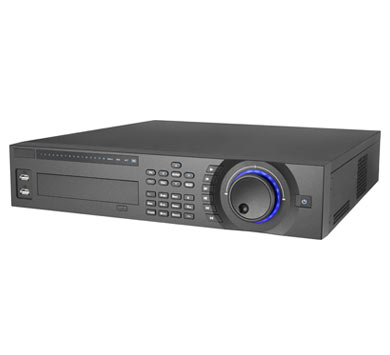

DVR3504/SDI 4 VOIES HD/SDI

Présentation :

DVR3504/SDI 4 CH HD/SDI. 8 emplacements HDs, HDMI


Caractéristiques :


  •
      MODEL
      DVR3504/SDI


      System


      Main Processor
      Dual-core embedded processor


      Operating System
      Embedded LINUX


      Video


      Input
      4 channel, BNC


      Standard
      1080P: (25/30) / 720P: (25/30,50/60)


      Audio


      Input
      4 channel, BNC


      Output
      1 channel, BNC


      Two-way Talk
      1 channel Input, 1 channel Output, BNC


      Display


      Interface
      1 HDMI, 1 VGA, 1 TV, BNC


      Resolution
      1920×1080, 1280×1024, 1280×720, 1024×768


      Display Split
      1/4


      Privacy Masking
      4 rectangular zones (each camera)


      OSD
      Camera title, Time, Video loss, Camera lock, Motion detection, Recording


      Recording


      Video/Audio Compression
      H.264 / G.711


      Record Resolution
      1080P: (1920×1080)


      720P: (1280×720)


      D1: (704×576 / 704×480)


      CIF: (352×288 / 352×240)


      Record Rate
      Main stream
      Max 100/120fps@1080p


      Extra stream
      D1/CIF (25/30fps)


      Bit Rate
      256~8096Kb/s


      Record Mode
      Manual, Schedule (Regular(Continuous), MD, Alarm), Stop


      Record Interval
      1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec


      Video Detection & Alarm


      Trigger Events
      Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Spot, Buzzer & Screen tips


      Motion Detection
      Motion Detection, MD Zones: 396 (22×18), Video Loss & Camera Blank


      Alarm Input
      4 channel


      Relay Output
      6 channel


      Playback & Backup


      Sync Playback
      1/2/4


      Search Mode
      Time/Date, Alarm, MD & Exact search (accurate to second), Smart search


      Playback Functions
      Play, Pause, Stop, Rewind, Fast play, Slow play,
     Next file, Previous file, Next camera, Previous camera, Full screen,
     Repeat, Shuffle, Backup selection, Digital zoom


      Backup Mode
      USB Device / eSATA Device / Internal SATA burner / Network


      Network


      Ethernet
      RJ-45 port (10/100M/1000M)


      Network Functions
      HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, Alarm Server


      Max. User Access
      20 users


      Smart Phone
      iPhone, iPad, Android, Windows Phone


      Storage


      Internal HDD
      8 SATA ports (8HDDs or 6HDDs+1CD/DVD-RW), up to 32TB


      External HDD
      1 eSATA port (Max 4 SATA HDDs), up to 16TB


      Auxiliary Interface


      USB Interface
      4 ports (2 Rear), USB2.0


      RS232
      1 port, For PC communication & Keyboard


      RS485
      1 port, For PTZ control


      General


      Power Supply
      AC 100~240V, 50/60 Hz


      Power Consumption
      40W (without HDD)


      Working Environment
      -10°C ~ +55°C / 10~90%RH / 86~106kpa


      Dimension (W×D×H)
      2U, 440×460×89 mm


      Weight
      6.5KG (without HDD)






Détails :

Marque  : CCTV
Code EAN  :
