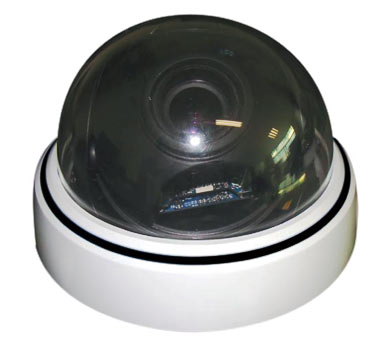

SDI-Pearl/036M-2M 2.1MP HD-SDI DOME CAMERA, 1080P,

Présentation :

2.1MP HD-SDI DOME CAMERA, 1080P, 3.6mm


Caractéristiques :


  •
      MODEL
      SDI-Pearl/036M-2M


      System


      Sensor
      1/3" Panasonic CMOS


      Video uncompressed format
      SDI digital signal


      Total pixels
      2010(H)×1108(V)


      Effective pixels
      1944(H)×1092(V)


      Real-time resolution
      1080P


      Min. illumination
      Color: 0.15Lux/F1.2, B/W: 0.01 Lux/F1.2


      Sync system
      Internal / Line lock


      S/N ratio
      ≥50db (AGC OFF)


      Video output
      1.0Vp-p Composite Video Output, 75 Ohm


      Lens


      Lens type
      3.6mm M12 Lens


      Function


      Electronic shutter
      Manual / Auto (1/50~1/100,000)


      White balance
      ATW / Manual / Outdoor / Indoor / Auto


      NR (noise reduction)
      2D / 3D / smart noise reduction


      Digital effect
      Freeze, D-Zoom, Neg. image


      DWDR
      High / Middle / Low


      BLC
      BLC / HLC / OFF


      Lens shading compensation
      ON/OFF


      AGC
      ON/OFF


      Day&Night
      B/W / Color / Auto / EXT


      Privacy zones
      ON/OFF (4 areas)


      Motion detection
      ON/OFF (8 areas)


      DPC
      Yes


      Mirror function
      Horizontal / Vertical / Rotate


      Defog function
      High / Middle / Low


      Digital output
      SDI signal


      Transmission rate
      1.485/1.001Gb/s, HD-SDI output


      SDI transmission range
      150 meters, use standard coaxial cable (RG59) with BNC interface


      OSD menu
      English, Chinese


      Environment


      Operating Environment
      -20°C ~ +55°C / 0%-90%


      Water proof grade
      ?


      Power Supply
      DC12V±10%


      Power comsumption
      200mA / DC12V






Détails :

Marque  : CCTV
Code EAN  :
