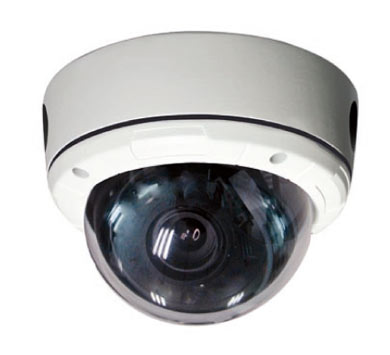

SDI-Beetle/2812D-2M 2.1MP HD-SDI Vandal Proof DOME
Présentation :
2.1MP HD-SDI Vandal Proof DOME CAMERA, 1080P, 2.8-12mm DC LENS
Caractéristiques :
-
MODEL SDI-Beetle/2812D-2M System Sensor 1/3" Panasonic CMOS Video uncompressed format SDI digital signal Total pixels 2010(H)×1108(V) Effective pixels 1944(H)×1092(V) Real-time resolution 1080P Min. illumination Color: 1.0 Lux/F1.2, B/W: 0.5 Lux/F1.2 Sync system Internal / Line lock S/N ratio ≥50db (AGC OFF) Video output 1.0Vp-p Composite Video Output, 75 Ohm Lens Lens type 2.8-12mm DC Function Electronic shutter Manual / Auto (1/50~1/100,000) White balance ATW / Manual / Outdoor / Indoor / Auto NR (noise reduction) 2D / 3D / smart noise reduction Digital effect Freeze, D-Zoom, Neg. image DWDR High / Middle / Low BLC BLC / HLC / OFF Lens shading compensation ON/OFF AGC ON/OFF Day&Night B/W / Color / Auto / EXT Privacy zones ON/OFF (4 areas) Motion detection ON/OFF (8 areas) DPC Yes Mirror function Horizontal / Vertical / Rotate Defog function High / Middle / Low Digital output SDI signal Transmission rate 1.485/1.001Gb/s, HD-SDI output SDI transmission range 150 meters, use standard coaxial cable (RG59) with BNC interface OSD menu English, Chinese Environment Operating Environment -20°C ~ +55°C / 0%-90% Protection grade Lightning proof, Vandal proof, IP66 Power Supply DC12V±10% Power comsumption 200mA / DC12V Dimensions 107(H)×150(D) mm
Détails :
