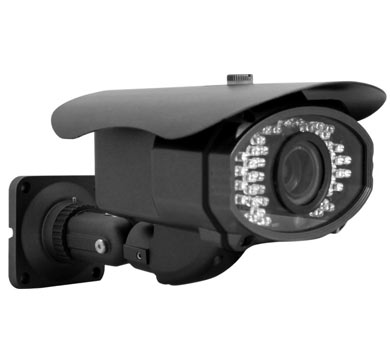

SDI-Shark40/2812D-2M 2.1MP HD-SDI IR CYLINDER CAME

Présentation :

2.1MP HD-SDI IR CYLINDER CAMERA , 1080P , 2.8-12mm


Caractéristiques :


  •

      MODEL

      SDI-Shark40/2812D-2M



      System


      Sensor
      1/3" Panasonic CMOS


      Video uncompressed format
      SDI digital signal


      Total pixels
      2010(H) × 1108 (V)


      Effective pixels
      1944(H) × 1092 (V)


      Real-time resolution
      1080P


      Min.illumination
      0 lux


      IR distance
      40-50M / (IR leds: 48×Φ5)


      Sync system
      Internal


      S/N ratio
      ≥50db (AGC OFF)


      Video output
      1.0Vp-p Composite Video Output, 75 Ohm



      Lens


      Lens type
      2.8-12mm DC ICR



      Function


      Electronic shutter
      Manual/Auto(1/50~1/100,000)


      White balance
      ATW/Manual/Outdoor/Indoor/Auto


      NR( noise reduction)
      2D/3D/ smart noise reduction


      Digital effect
      Freeze,D-Zoom,Neg. image


      DWDR
      High/Middle/Low


      BLC
      BLC/HLC/OFF


      Lens shading compensation
      ON/OFF


      AGC
      ON/OFF


      Day&Night
      B/W/Color/Auto/EXT


      Privacy zones
      ON/OFF(4 areas)


      Motion detection
      ON/OFF(8 areas)


      DPC
      Yes


      Mirror function
      Horizontal/Vertical/Rotate


      Defog function
      High/Middle/Low


      Digital output
      SDI signal


      Transmission rate
      1.485/1.001Gb/s，HD-SDI output


      SDI transmission range
      150 meters, use standard coaxial cable (RG59) with BNC interface


      OSD menu
      English, Chinese



      Environment


      Operating Environment
      -20℃~55℃ / 0%-90%


      Protection grade
      Lightning proof ,IP66


      Power Supply
      DC12V± 10%


      Power comsumption
      600mA/DC12V


      Dimensions
      99.7(W)×95.5(H)×212(L)mm






Détails :
