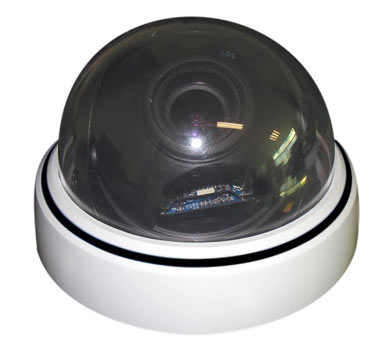

Pearl/2811D-E6 1/3" SONY Super HAD?UCCD, 600TVL
Présentation :
Pearl/2811D-E6 1/3" SONY Super HAD?UCCD, 600TVL, lightning-proof, 2.8-11mm DC Korea lens, 3D Bracket, DC12V
Caractéristiques :
- 1/3" SONY Super HAD CCD II Sensor- DSP:Sony Effio-E- Resolution: Color 600TVL- Min illumination: Color 0.06Lux/F1.2, B/W:0.006lux/F1.2- Motion detection,Privacy zones,BLC,HLC,CRR- Electronic shutter adjustable, Mirror function,White Balance,ATR,NR(2D noise reduction)- IR distance:10-15m (18x?³5)- OSD menu,,Lightning proof, 3D adjustable bracket, DC12V
MODEL Pearl/2811D-E6
Pick-up device 1/3" SONY Super HAD CCD II Sensor
Effective pixels NTSC:768*494,PAL:752*582
Resolution Color 600TVL
Min.illumination Color 0.06Lux/F1.2, B/W:0.006lux/F1.2
Scan system 2:1 interlace
Sync system Internal/Line lock
S/N ratio more than 50dB
Lens 2.8-11mm DC
Angle of view 124.3?-30.2?
Electronic shutter AUTO(1/60(1/50)~1/100,000) /FIXED/MANUAL
White balance MANUAL/USER1/USER2/PUSH LOCK/CRR/ATW
NR(2D noise reduction) Y/C,Y,C,OFF
Image adjustment Lightness/Contrast/Sharpness/Tone/Saturation
ATR OFF/ON
BLC HLC/BLC/OFF
AGC ON/OFF
Day&Night Auto/B/W/Color
Privacy zones Off/On(4 areas)
Motion detection Off/On(4 areas)
Mirror function Horizontal mirror/OFF
Gamma 0.45(Default)
OSD menu
7 kinds of language
(English/Japanese/French/Spanish/German etc.)
Video output 1.0Vp-p Composite Video Output, 75 Ohm
Power supply DC12V} 10%
Power consumption(Max) 200mA/DC12V
Operation temp. -20?C ~ 50?C
Détails :
Sat Info Services nest pas responsable des erreurs dans la documentation
des produits. |
